• Product for Energy Management Solution

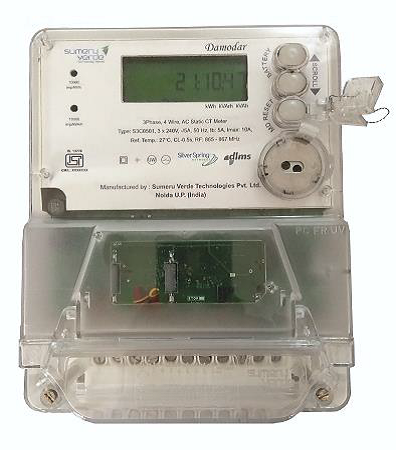

    Intelligent Energy Meter

    Heightened demand for power availability, distributed generation, and greater efficiency are creating a need for more consumption and power quality measurements at the edge. Meeting this need, Sumeru Verde introduces an Intelligent Energy Meter offer 16 channels of load profile data.

    Key Features

    • Configure and store up to 16- channels of load profile data like Voltage, Current, Power Factor and all types of energy/power.
    • Power quality measurements include:
      • Voltage Sag / Swell
      • Power Outages
      • Phase Loss Occurrences
      • THD
      • Over Current
      • Unbalanced Voltage Detection
    • Secure firmware upgrades

    Specifications

    • Accuracy
      • Active: Class 0.5 compliant to IS14697
      • Reactive: Class 0.5 compliant to IS14697
    • Rating
      • 5 – 10 Amp.
    • Operating temperature
      • 5 – 10 Amp.
      • Specified Operating Range: -10° to +55° C
      • Limited Operating Range: -25° to +55° C
      • Storage and Transport: -25° to +70° C
    • Voltage
      • 220V to 240V phase-to-neutral, 380V to 415V phase-to-phase, range -40% to +20%
    • Frequency
      • 50Hz +5%
    • Service type
      • 3-phase 4-wire Wye/Star, 3-phase 3 wire Wye/Star
    • Display
      • STN-type LCD with backlight support
        • 8 digit display
        • 10*6 mm character size
        • 30 icons
    • Communications
      • Modbus over RS-485
        • Meter enclosure is an engineering grade polycarbonate plastic and is IP51 compliant.

    DCU / Gateway

    Data Concentrator Unit (DCU) is an intelligent device with built-in RS-485 modules to acquire data from IoT devices using programmed application. The DCU communicate with multiple IoT devices on RS-485 network that have functionality to execute the commands from head-end-system. The concentrator can also be programmed to analyze and communicate this information to the head-end-system database. One DCU supports up to 32 IoT devices and sensors.

    Key Features

    • Pass-through
    • Push-pull mode of operation
    • Communication Protocol: Modbus
    • Meter to DCU communication: RS485
    • DCU to HES communication: GPRS/Ethernet
    • Storage: 2GB
    • Schedule: Yes

    Sensors

    Test Contents .....Video provides a powerful way to help you prove your point. When you click Online Video, you can paste in the embed code for the video you want to add. You can also type a keyword to search online for the video that best fits your document

    Key Features

    • Test Feature 1
    • Test Feature 1
    • Test Feature 2
    • Test Feature 3
    • Test Feature 4
    • Test Feature 5
    • Test Feature 6
